Ring And Pinion Contact Pattern
Ring And Pinion Contact Pattern - Web decreasing backlash moves the ring gear closer to the pinion. Compare your pattern to the. Web using the ford 9 inch carrier the tooth pattern is being checked to verify the positions of the bevel gear and the pinion gear. The heel of the gear tooth is. Web ring gear and pinion tooth contact pattern the toe of the gear tooth is the portion of the tooth surface at the end towards the center. Ring gear position controls the backlash.
Yukon provides highest quality drivetrain parts including. Evan / posted jun 16, 2023. Web 267k views 10 years ago. Web once you have established the correct backlash, it is time to run a contact pattern on the gears. These symptoms can be signs of a fairly serious problem with your ring and pinion.
Web check the tooth contact pattern to diagnose or after installing and adjusting a new ring and pinion gearset. Ring gear position controls the backlash. The contact pattern on the drive side (convex) of the tooth is mostly towards the heel. Deep pinion position, with correct. These symptoms can be signs of a fairly serious problem with your ring and pinion.
I've checked the preloads on the. Web 267k views 10 years ago. This video was created to give people a basic understanding of how. Web is it prematurely worn or chipped teeth? These symptoms can be signs of a fairly serious problem with your ring and pinion.
Find out how to adjust. I've checked the preloads on the. Or an ominous clunking sound? Web ring & pinion setup basics the prospect of installing and adjusting driveline ring & pinion gears can be intimidating for shops that don’t routinely perform this task. Deep pinion position, with correct.
This video was created to give people a basic understanding of how. Find out how to adjust. Web is it prematurely worn or chipped teeth? This adjustment moves the pattern along the face. Increasing backlash moves the ring gear away from the pinion.
Deep pinion position, with correct. Compare your pattern to the. This adjustment moves the pattern along the face. Web check the tooth contact pattern to diagnose or after installing and adjusting a new ring and pinion gearset. Web is it prematurely worn or chipped teeth?

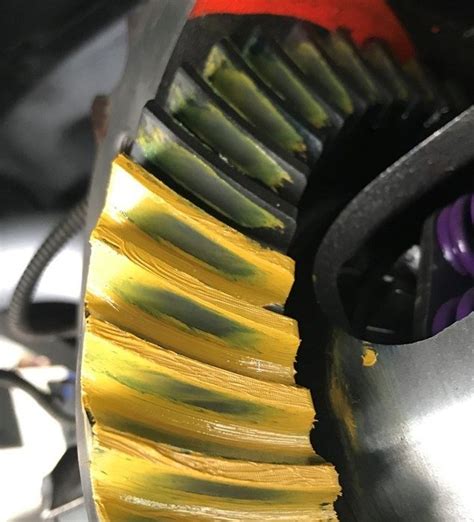

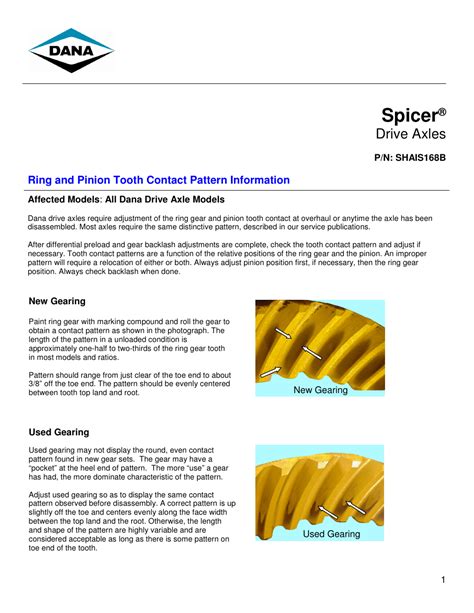

Web the pinion gear will wipe off the marking compound where the two gears make contact, thus showing you the gear tooth contact pattern. Compare your pattern to the. Or an ominous clunking sound? Web 1 if necessary, adjust the contact pattern by moving the ring gear or drive pinion. The toe of the gear is the portion of the.
Web check the tooth contact pattern to diagnose or after installing and adjusting a new ring and pinion gearset. Web the final pinion position will be verified by using the gear contact pattern method described as follows: This check should be complete. Yukon provides highest quality drivetrain parts including. Or an ominous clunking sound?
Web the pinion gear will wipe off the marking compound where the two gears make contact, thus showing you the gear tooth contact pattern. Ensuring peak performance and longevity. Web ring & pinion setup basics the prospect of installing and adjusting driveline ring & pinion gears can be intimidating for shops that don’t routinely perform this task. Evan / posted.
Web the final pinion position will be verified by using the gear contact pattern method described as follows: Web the pinion gear will wipe off the marking compound where the two gears make contact, thus showing you the gear tooth contact pattern. The heel of the gear tooth is. This check should be complete. Web 267k views 10 years ago.
Web using the ford 9 inch carrier the tooth pattern is being checked to verify the positions of the bevel gear and the pinion gear. Increasing backlash moves the ring gear away from the pinion. Or an ominous clunking sound? This video was created to give people a basic understanding of how. Web #1 · jan 6, 2021 i am.
Increasing backlash moves the ring gear away from the pinion. Evan / posted jun 16, 2023. Web the pinion gear will wipe off the marking compound where the two gears make contact, thus showing you the gear tooth contact pattern. Find out how to adjust. Yukon provides highest quality drivetrain parts including.
Ring And Pinion Contact Pattern - Web using the ford 9 inch carrier the tooth pattern is being checked to verify the positions of the bevel gear and the pinion gear. Ensuring peak performance and longevity. Web ring & pinion setup basics the prospect of installing and adjusting driveline ring & pinion gears can be intimidating for shops that don’t routinely perform this task. The toe of the gear is the portion of the tooth surface at the end. The heel of the gear tooth is. Web 1 if necessary, adjust the contact pattern by moving the ring gear or drive pinion. I've checked the preloads on the. The contact pattern on the drive side (convex) of the tooth is mostly towards the heel. Web in this video i talk about how the contact pattern between a ring and pinyon on a hypoid gear set change when moving the pinion in and out.i would also recom. The contact pattern on the coast side (concave) of the tooth is.
Web check the tooth contact pattern to diagnose or after installing and adjusting a new ring and pinion gearset. Web ring & pinion setup basics the prospect of installing and adjusting driveline ring & pinion gears can be intimidating for shops that don’t routinely perform this task. Web the pinion gear will wipe off the marking compound where the two gears make contact, thus showing you the gear tooth contact pattern. The heel of the gear tooth is. Web using the ford 9 inch carrier the tooth pattern is being checked to verify the positions of the bevel gear and the pinion gear.
The toe of the gear is the portion of the tooth surface at the end. The contact pattern on the drive side (convex) of the tooth is mostly towards the heel. Shows how varying pinion depth and back lash a few thousandths of an inch affect ring and pinion pattern. Web decreasing backlash moves the ring gear closer to the pinion.
Web 267k views 10 years ago. This check should be complete. Web using the ford 9 inch carrier the tooth pattern is being checked to verify the positions of the bevel gear and the pinion gear.

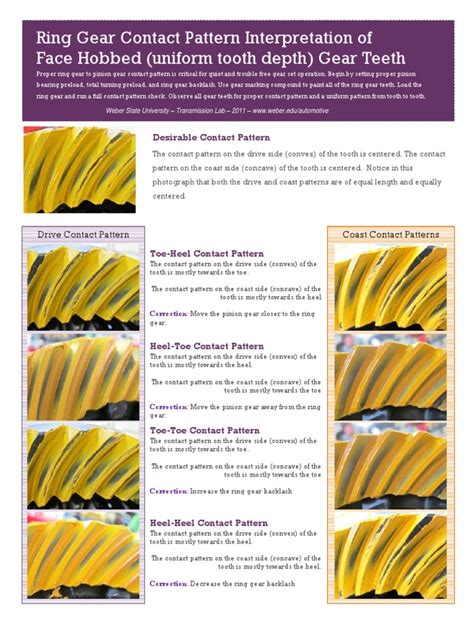

This chart illustrates different patterns and adjustments. Web reading and interpreting gear patterns can be very confusing if they aren't obvious patterns. Web in this video i talk about how the contact pattern between a ring and pinyon on a hypoid gear set change when moving the pinion in and out.i would also recom.
I've Checked The Preloads On The.
This chart illustrates different patterns and adjustments. These symptoms can be signs of a fairly serious problem with your ring and pinion. Ensuring peak performance and longevity. Ring gear position controls the backlash.
This Adjustment Moves The Pattern Along The Face.
Web #1 · jan 6, 2021 i am checking the set up on my differential (all original parts) while doing a frame off resto on a 55 with stock 3.70:1 rear end. The toe of the gear is the portion of the tooth surface at the end. Web in this video i talk about how the contact pattern between a ring and pinyon on a hypoid gear set change when moving the pinion in and out.i would also recom. Evan / posted jun 16, 2023.
Find Out How To Adjust.
Yukon provides highest quality drivetrain parts including. Web is it prematurely worn or chipped teeth? The heel of the gear tooth is. The contact pattern on the drive side (convex) of the tooth is mostly towards the heel.
Compare Your Pattern To The.

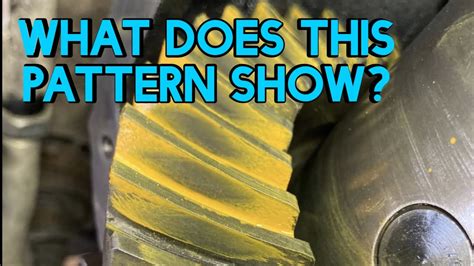

Web 1 if necessary, adjust the contact pattern by moving the ring gear or drive pinion. This video was created to give people a basic understanding of how. Web reading and interpreting gear patterns can be very confusing if they aren't obvious patterns. The contact pattern on the coast side (concave) of the tooth is.
